Voltage: 3.2V
Capacity: 100Ah
Energy: 320Wh
Size：118.5±0.5*160.0±0.8*50.1±0.5mm
|
Items |
Parameters |
Remarks |
|
|
Rated Capacity |
102Ah |
0.2C，25℃±2℃，2.5-3.65V |
|
|
Rated Energy |
320Wh |
0.2C，25℃±2℃，2.5-3.65V |
|
|
ACR |
≤0.5mΩ |
AC，1kHz，25%SOC |
|
|
Nominal Voltage |
3.2V |
0.2C，25℃±2℃，2.5-3.65V |
|
|
Weight |
1985±100 g |
/ |
|
|
Charging Cut-off Voltage (Umax) |
3.65V |
/ |
|
|
Discharging Cut-off Voltage (Umin) |
2.5 (0℃<T≤65℃) |
||
|
2.0 (-20℃<T≤0℃) |
/ |
||
|
Charging/ Discharging |
Standard Charging/Discharging Current |
0.2C/0.2C |
25℃±2℃ |
|
Maximum charging current |
1C |
25℃±2℃ |
|
|
Cycling Performance |
25℃ Standard Cycle |
5000 Cycles， 0.5C/0.5C |
|
|
35℃ Standard Cycle |
3500 Cycles， 0.5C/0.5C |
Capacity Retention≥80%. |
|
|
45℃ Standard Cycle |
2000 Cycles， 0.5C/0.5C |
/ |
|
|
Operation Temperature |
Charging Temperature |
0~65℃ |
/ |
|
Discharging Temperature |
-20~65℃ |
||
|
Storage Temperature |
>1 month |
0~35℃ |
Delivery SOC State (20~40%) |
|
≤1 month |
-20~45℃ |
||
|

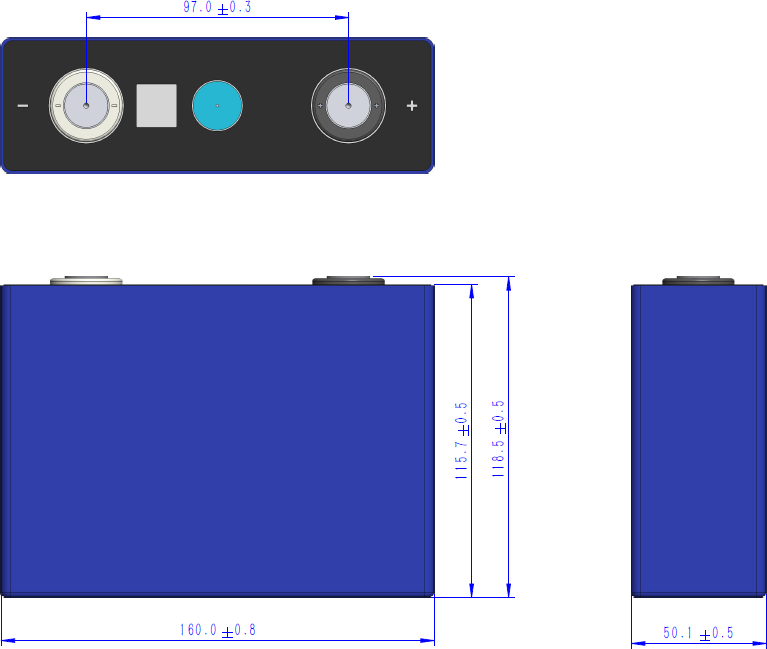

Dimension |
Terminal Height |
118.5±0.5mm |
/ |
|
Shoulder Height |
115.7±0.5mm |
||
|
Width |
160.0±0.8mm |
||
|
Thickness |
50.1±0.5mm （200kgf，Delivery SOC） |
||
