Voltage: 3.2V
Capacity: 105Ah
Energy: 336Wh
Size：200.5±0.5*130.30±0.5*36.35±0.5mm
|
Items |
Parameters |
Remarks |
|
|
Rated Capacity |
105Ah |
0.5C，25℃±2℃，2.5-3.65V |
|
|
Rated Energy |
336Wh |
||
|
ACR |
≤0.5mΩ |
AC，1kHz，30-40%SOC |
|
|
Nominal Voltage |
3.2V |
0.5C，25℃±2℃，2.5-3.65V |
|
|
Weight |
1980±60 g |
/ |
|
|
Charging Cut-off Voltage (Umax) |
3.65V |
/ |
|
|
Discharging Cut-off Voltage (Umin) |
2.5 (0℃<T≤65℃) |
||
|
2.0 (-20℃<T≤0℃) |
/ |
||
|
Charging/ Discharging |
Standard Charging/Discharging Current |
0.5C/0.5C |
25℃±2℃ |
|
Cycling Performance |
25℃ Standard Cycle |
4000 Cycles， 0.5C/0.5C |
Capacity Retention≥80%. |
|
45℃ Standard Cycle |
2000 Cycles， 0.5C/0.5C |
/ |
|
|
Operation Temperature |
Charging Temperature |
0~65℃ |
/ |
|
Discharging Temperature |
-35~65℃ |
||
|
Storage Temperature |
>1 month |
0~35℃ |
/ |
|
≤1 month |
-20~45℃ |
||
|

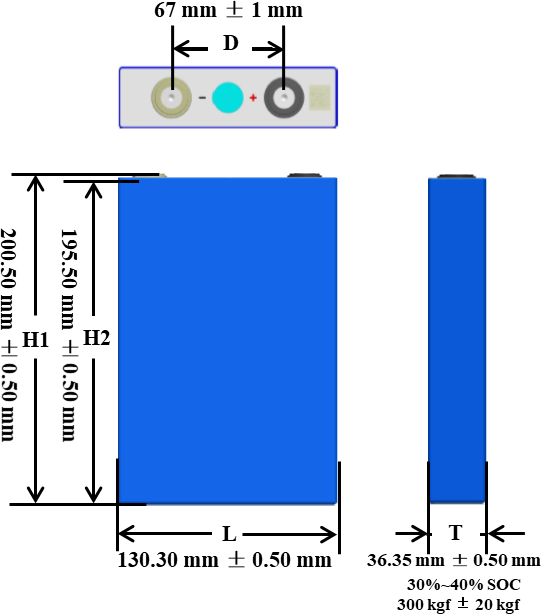

Dimension |
Terminal Height |
200.50±0.5mm |
/ |
|
Shoulder Height |
195.50±0.5mm |
||
|
Width |
130.30±0.5mm |
||
|
Thickness |
36.35±0.5mm （300kgf，Delivery SOC） |
||
